Rupture Disk

IMBL
Monoblock Graphite Disks

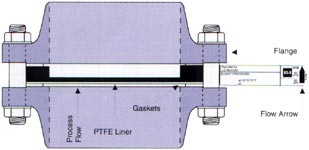

Inverted MonoBloc disk with liner extends corrosion resistance and resists product build-up with the use of a PTFE liner.

When using an inverted MonoBloc disk with liner in application:

  • If a vacuum support is required, Model MBV™ disks must be specified, with PTFE coating
  • Temperature ranges –73 degrees Celsius to 205 degrees Celsius (-100 degrees Fahrenheit to 400 degrees Fahrenheit)
  • Armoring is recommended for all graphite disks for added safety, easier installation and elimination of breakage during installation
  • Armor reduces the possibility of a premature burst due to uneven or excessive torqueing of the flange studs
  • Corrosion resistant (except free flourine)
  • All IMBL™ disks supplied with integral gaskets
  • Available for installation between ANSI, DIN, AFNOR, BS and JIS pipe flanges & located inside the bolt circle

Inverted MonoBloc disks with liner extends corrosion resistance to practically all corrosives except free flourine.

IMBL Specifications

Nominal Size
Burst Ratings
Internal
Diameter
Disk Thickness
Barg PSIG
mm
in.
min.
max.
min.
max.
mm
in.
mm
in.
15 0.5 1.72 17.2 25 250 15.9 0.625 16 0.625
20 0.75 1.72 17.2 25 250 21.0 0.825 16 0.625
25 1 0.69 17.2 10 250 27.2 1.07 22 0.875
40 1.5 0.49 17.2 7 250 41.1 1.62 22 0.875
50 2 0.21 17.2 3 250 52.6 2.07 22 0.875
80 3 0.14 17.2 2 250 78.0 3.07 22 0.875
100 4 0.10 17.2 1.5 250 103.4 4.07 22 0.875
150 6 0.069 11.7 0.5 170 154.2 6.07 22 0.875
200 8 0.035 11.7 0.5 170 205.0 8.07 29 1.125
250 10 0.017 10.3 0.25 150 255.8 10.07 38 1.50
300 12 0.017 10.3 0.25 150 306.6 12.07 51 2.00
325 14 0.017 10.3 0.25 150 336.5 13.25 57 2.25
400 16 0.017 10.3 0.25 150 387.4 15.25 64 2.50
450 18 0.017 10.3 0.25 150 438.2 17.25 70 2.75
500 20 0.017 10.3 0.25 150 489.0 19.25 76 3.00
600 24 0.017 10.3 0.25 150 590.6 23.25 76 3.00
15 0.5 1.72 69 25 1000 15.9 0.625 16 0.625
20 0.75 1.72 69 25 1000 21.0 0.825 16 0.625
25 1 0.69 69 10 1000 27.2 1.07 25 1.00
40 1.5 0.49 69 7 1000 41.1 1.62 25 1.00
50 2 0.21 34.5 3 500 52.6 2.07 25 1.00
80 3 0.14 34.5 2 500 78.0 3.07 32 1.25
100 4 0.10 34.5 1.5 500 103.4 4.07 32 1.25
150 6 0.069 31 1 450 154.2 6.07 44 1.75
200 8 0.035 31 0.5 450 205.0 8.07 57 2.25
